Underground Electronic Marking Solution

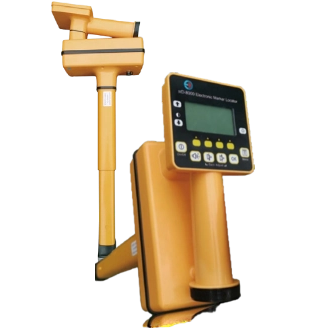

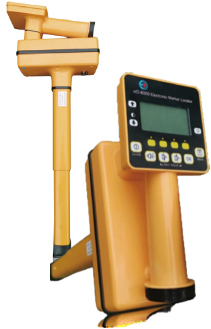

1. WD-8000 Electronic Marker Locator

(1) Key Features

• The WD-8000 supports two working modes: analog electronic marker (without ID) detection and ID electronic marker detection. In analog electronic marker (without ID) detection mode, the WD-8000 can detect all electronic markers produced according to standard frequencies: gas 83 kHz (yellow), communications 101.4 kHz (orange), drainage 121.6 kHz (green), water supply 145.7 kHz (blue), power 169.8 kHz (red), universal 134 kHz, and GP 66.35 kHz (purple).

• Equipped with a high-gain RF antenna, it offers excellent anti-interference performance.

• In ID detection mode, it can read the preset ID number in the electronic marker. When used with the Yideng Android APP, the cloud database associated with this ID number provides additional information about underground facilities, such as site photos, installation date, construction personnel, type of underground facility (valve, joint, etc.), material, dimensions, and more.

• The RFID mode can be flexibly selected based on the type of underground electronic marker being detected and environmental interference conditions:

◆ RFID Off Mode: Pure analog detection mode, no RFID decoding, fast response speed, and excellent compatibility.

◆ RFID Auto Mode: Uses pure analog detection mode when scanning markers, attempts to read marker IDs only during depth measurement, saves power, and offers excellent compatibility.

◆ RFID On Mode: The detector continuously attempts to read marker IDs and only issues alerts upon successful ID retrieval, effectively blocking interference signals.

(2) Performance Parameters

• Weight: 2.8–3.2 kg

• Dimensions: 750 × 280 × 120 mm

• Maximum Detection Depth:

◆ Long-Range Marker (WDYZ2400): 2.5–3.0 meters

◆ Medium-Range+ Marker (WD2000): 2.2–2.6 meters

◆ Spherical Marker (WD1500): 1.4–1.6 meters

◆ Nail-Type Marker (WD1100): 0.8–1.2 meters

• Waterproof Rating: IP54

• Battery: 14.8 V lithium-ion, up to approx. 20 hours of operation

• Maximum ID Read Depth:

◆ Long-Range ID Marker (WDYZ2400ID-RW): 2.5–3.0 meters

◆ Medium-Range+ ID Marker (WD2000ID-RW): 2.3–2.6 meters

◆ Spherical ID Marker (WD1500ID-RW): 1.4–1.6 meters

◆ Nail-Type ID Marker (WD1100ID-RW): 0.8–1.2 meters

• Maximum ID Write Depth:

◆ Long-Range ID Marker (WDYZ2400ID-RW): 0.5–1.0 meters

◆ Medium-Range+ ID Marker (WD2000ID-RW): 0.4–0.6 meters

◆ Spherical ID Marker (WD1500ID-RW): 0.3–0.5 meters

◆ Nail-Type ID Marker (WD1100ID-RW): <0.3 meters

Note: The above performance parameters may vary slightly under different operating frequencies and antenna configurations.

Frequency: Gas 83 kHz, Communication 101.4 kHz, Drainage 121.6 kHz, Water Supply 145.7 kHz, Power 169.8 kHz/134 kHz, General Purpose 66.35 kHz, Cable TV 77 kHz (*Performance parameters may vary slightly under different operating frequencies).

2. WD2000 Mid-Range Underground Electronic Marker

• Diameter: 21.3 cm, Thickness: 3.1 cm

• Weight: 0.21 kg ±5%

• Waterproof Rating: IP68

• Maximum Detectable Depth: 2.2–2.6 m

• ID Read Depth: 2.3–2.6 m (WD2000ID-RW)

• Information Write Depth: <0.6 m (WD2000ID-RW)

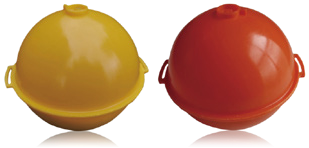

3. WD1500 Spherical Underground Electronic Marker

• Diameter: 11 cm (excluding cable tie holes)

• Weight: 0.36 kg ±5%

• Waterproof Rating: IP68

• The induction coil is suspended above the built-in antifreeze solution, ensuring it remains horizontally upward

• Maximum detectable depth: 1.4–1.6 meters

• ID read depth: 1.4–1.6 meters (WD1500ID-RW)

• Information write depth: <0.5 meters (WD1500ID-RW)

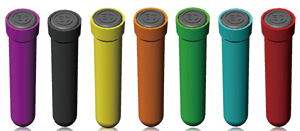

4. WD1100 Spike-Type Underground Electronic Marker

• Diameter 20mm, Length 76 mm

• Weight: 0.03 kg ±10%

• Waterproof Rating: IP68

• Maximum Detectable Depth: 0.8–1.2 meters

• ID Read Depth: 0.8–1.2 meters (ED1100ID-RW)

• Information Write Depth: <0.3 meters (ED1100ID-RW)

5. WDYZ2400 Remote Underground Electronic Marker

• Diameter: 40 cm, Thickness: 3.2 cm

• Weight: 0.38 kg ±10%

• Waterproof Rating: IP68

• Maximum Detectable Depth: 2.5–3.0 meters

• ID Read Depth: 2.5–3.0 meters (WDYZ2400ID-RW)

• Information Write Depth: <1.0 meter (WDYZ2400ID-RW)
